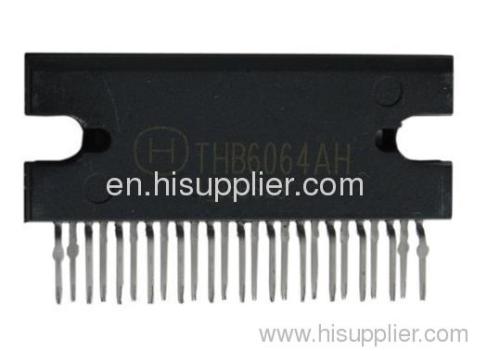

Electronic Components IC TOSHIBA Stepper Driver THB6064AH Ron 0.4 Ω,VDC 50V,2.2A,Hot Sales
| Price: | 7.51~8.5 USD |
| Payment Terms: | T/T;PayPal |
| Place of Origin: | Beijing, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Electronic Components,THB6064AH IC
Stepper Driver,TOSHIBA
Ron 0.4 Ω,VDC 50V,2.2A,Hot Sales
Thermal shutdown,over-current detection
EMS
Electronic Components IC TOSHIBA Stepper Driver THB6064AH Ron 0.4 Ω,VDC 50V,2.2A,Hot Sales
The THB6064AH is a PWM chopper-type sinusoidal micro-step bipolar stepping motor driver IC. ( applied in textile machine,instruments,bridle machine,engraver machine,atomizing machine,coiling mahine,dispenser machineect step motors.)
It supports 8 kind of excitation modes and forward/reverse mode and is capable of low-vibration, high-performance drive of 2-phase bipolar type stepping motors using only a clock signal.
Parameter
Features
Single-chip bipolar sinusoidal micro-step stepping motor driver
Uses high withstand voltage BICD process: Ron (upper + lower) 0.4 (typ.)
Forward and reverse rotation control available
Selectable phase drive (1/2, 1/8, 1/10, 1/16, 1/20, 1/32, 1/40, 1/64 step)
Output monitor pins (DOWN / ALERT)
Equipped with reset and enable pins
Built-in thermal shutdown(TSD) and over-current detection(ISD) circuitHigh output withstand voltage: VDSS 50 V
High output current: Iout 4.5 A (peak)
Packages: HZIP25-P-1.27
Dementions:3.65*2.0*0.5 cm
Weight:9.86g Welcome for inquiries! thank you!
Cell:(86)13681155261
Skype:jerryzhang718
Block diagram
